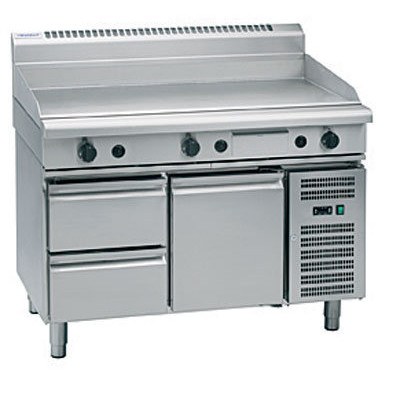

Description
- 1200mm griddle plate
- 20mm thick griddle plate
- Refrigerated Base
- Heavy?duty thermostatic gas griddle
- 108MJ thermostatic burner system
- Flame failure standard
- Available in Natural Gas & LPG
- Units supplied complete with gas type conversion kits
- Ribbed plate options
- Chromed mirror plate options
- Separate left,centre and right heat zones
- Top weld sealed plates
- Stainless steel exterior
- Easy to clean
- Easy service
- Fully modular
- Overall Construction ? Griddle
- 2.5mm thick 304 SS splash guards sides and rear
- Full pilot and flame failure protection
- Welded hob sorround with 1.5mm 304 stainless steel bull nose
- Splashback and side panels 1.2mm 304 stainless steel
- Stainless steel grease drawer
- Front panels 0.9mm 304 stainless steel
- Overlapping finish at front and rear of plate
- Refrigerated Base
- Digital control electronic thermostat
- Automatic evaporation of defrost water
- ?2° to + 8°C temperature range
- Ventilated system with R134a refrigerant
- 2 GN 1/1 drawers
- 100mm deep pan capacity
- SS exterior and interior
- Magnetic drawer gaskets
- Anti?corrosion treated evaporator
- 50mm fully foamed CFC free insulation
- No condensate drained required
- Removable condensing unit through front
- Adjustable feet
- Legs are 63mm dia. heavy?duty 1.2mm 304 stainless steel
- Controls
- 90?300°C thermostat
- Large easy use control knob
- Heat resistant reinforced
- Piezo ignition
- Easy view control settings on knob
- Cleaning and Servicing
- All models with easy clean stainless steel external finish
- Plate is finished front and rear
- Control service and gas conversion through front of unit
- Burner service requires plate removal
- Standard splashback or Low Back models available
- Low Back models are non-stocked items
- Warranty: 12 months Parts & Labour
- Maximum Gas: 108 MJ/hr; 30 kW
- Dimensions: 1200 x 805 x 915 [h]
- Nett weight: 242 kg
