Description

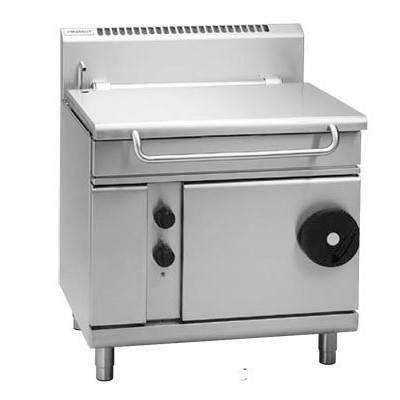

- 900mm gas tilting bratt pan
- 80L oil capacity
- 75MJ stainless steel burner
- Manually operated tilting mechanism
- Available in Natural Gas & LPG
- Units supplied complete with gas type conversion kits
- Optional electric power tilting mechanism
- Heavy?duty lid and hinge system
- Galvanized steel chassis
- Stainless steel exterior
- Easy to clean
- Easy service
- Fully modular
- Overall Construction
- Heavy?duty galvanized steel chassis
- Splashback and side panels 1.5mm 304 stainless steel
- Front panels 0.9mm 304 stainless steel
- Full stainless steel pan
- 12mm thick stainless steel even heat pan base
- Large capacity pouring spout
- Heavy?duty spring balanced lid hinge system
- Full width stainless steel lid handle
- Manually operated pan lift handwheel
- Electrically powered pan tilting option
- Adjustable feet
- Legs are 63mm dia. heavy?duty 1.2mm 304 stainless steel
- Controls
- Large easy use control knobs
- Heat resistant reinforced
- Easy view control settings on knobs
- Single control for power and heating control
- Indicator lights for power and heating
- Quarter turn water valve control
- Automatic pilot ignition and flame failure fitted
- 50°C?320°C electric thermostatic burner control
- Over?temperature safety cut?out
- Fold away handle on manual pan tilt
- Pan up and down switches on electric pan tilt
- Lock?out alarm indicators on front
- Cleaning and Servicing
- Seamless full stainless steel pan
- Easy clean stainless steel exterior panels
- Easy connection access via front service panels
- Service friendly lid hinge system
- Access to all parts from front of unit
- Standard splashback or Low Back models available
- Low Back models are non-stocked items
- Warranty: 12 months Parts & Labour
- Maximum Gas: 75 MJ/hr; 21 kW
- Dimensions: 900 x 805 x 915 [h]
- Nett weight: 170 kg
