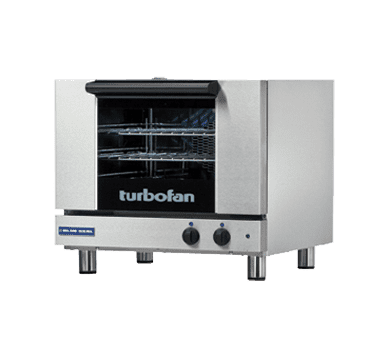

Turbofan E22M3 Convection Oven

Description

This new 10A plug-in utility oven is a convection oven in its simplest form and, with a smaller 610mm width footprint, is completely portable and ideal for countertop use. This allows for baking of morning and convenience foods such as cookies, muffins, Danish pastries, biscotti, breads, cakes, baked potatoes, frozen pizzas and many other snack and takeout foods. Smart design, 2kW of plug-in performance and a single direction fan makes this the easiest oven to use across a wide range of applications.

STANDARD FEATURES

• 3 18” x 13” / 460 x 330 half size sheet pan capacity
• 3 GN 2/3 pan capacity
• 70mm tray spacing
• Compact 610mm width
• Single direction low-velocity fan
• 2kW heating power
• 10A plug-in cordset fitted
• Vitreous enamel oven chamber
• Plug-in continuous oven door seal
• Safe-Touch vented drop down door
• Stay-Cool door handle
• Heavy-duty door hinges
• Easy clean door glass system
• Mechanical thermostat 50-260°C
• 60 minute timer with time up alarm
• Anti-skid 50mm dia. 76mm high adjustable stainless steel feet
• 3 oven wire racks supplied
• 100% recyclable packaging

OPTIONAL ACCESSORIES

• Turbofan SK23 Oven Stand

CONSTRUCTION

• Vitreous enamel fully welded oven chamber
• Stainless steel front, sides and top exterior
• Stainless steel oven fan baffle
• Removable 3 position chrome plated wire side racks
• Oven racks chrome plated wire (3 supplied)
• Stainless steel frame drop down hinged door
• 5mm thick door outer glass
• 5mm thick low energy loss door inner glass
• Heavy-duty counterbalanced door hinges
• Wear resistant powder coated welded door handle
• Stainless steel control panel
• Aluminised coated steel base and rear panels

CONTROLS

• Power ON control panel indicator
• Mechanical thermostat 50-260°C
• Heating ON control panel indicator
• Manual 60 minute timer
• Time-Up control panel indicator and buzzer

CLEANING

• Stainless steel top and sides continuous exterior panel
• Vitreous enamel oven chamber
• Fully removable chrome plated oven side racks
• Removable stainless steel oven fan baffle
• Easy clean door system with hinge out door inner glass
• (no tools required)
• Removable plug-in oven door seal (no tools required)
• 76mm high stainless steel feet for easy access underside

SPECIFICATIONS

• Electrical Requirements
• 230-240V, 50Hz, 1P+N+E, 2.1kW, 9A
• 10A cordset fitted

External Dimensions

Width – 610mm
Height – 552mm including 76mm feet
Depth – 608mm

Oven Internal Dimensions

Width – 495mm
Height – 250mm
Depth – 340mm
Volume – 0.042m3

Oven Rack Dimensions

Width – 460mm
Depth  – 330mm

Nett Weight (E22M3)
35.4kg

Packing Data (E22M3)
48kg
0.34m3
Width – 750mm
Height – 705mm
Depth – 635mm
