Description
• 10 000 mm in Length

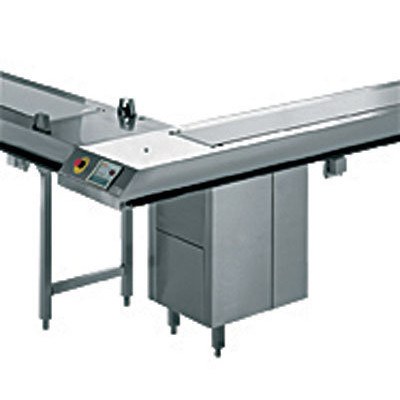

• Food distribution conveyors and clearing belt conveyors are part and parcel of a professionally organized food distribution system.
• Food distribution conveyors and clearing conveyors come in two different versions:
• As belt conveyors or circular belt conveyors.
• Belt unit, belt conveyor and motor station in modular design.
• Belt conveyors feature a dirt stripper as standard
• Drawer with dirt scraper.
• Sliding tables offer a low-cost alternative for small food distribution solutions.
• Guaranteed guidance;
• The conveyor body is fitted with a tray guide system .
• Controls at the end of belt, switchbox with control/fuse box, main switch.
• Functions: belt on/stop/proportional speed display, emergency OFF switch.
• Clean and neat
• Fully in control
• Washable membrane keypad for function control and monitoring.
• Conveyor carcass, flat belt and motor station in modular design.
• Stainless steel housing, belt suitable for use with foodstuffs and antistatic, 295 mm wide, white.
• Integrated light barrier which automatically shuts down the belt conveyor. (Optional)
• Rotary current motor, stepless adjustment from 2.5 m/min – 10.5 m/min.
• Up to 12 m with 1 motor, over 12 m with 2nd motor.
• With height-adjustable feet +/- 15 mm.
• Distance between feet is 2 m.
• Rated voltage 3N AC 400 V, 50 Hz.
• Three phase motor, stepless adjustment from 2.5 – 10.5 m/min.
• Deep dispenser
• Automatic tray stacking with spring limit switch on tray dispenser (option for clearing conveyor).
• No danger of jams
