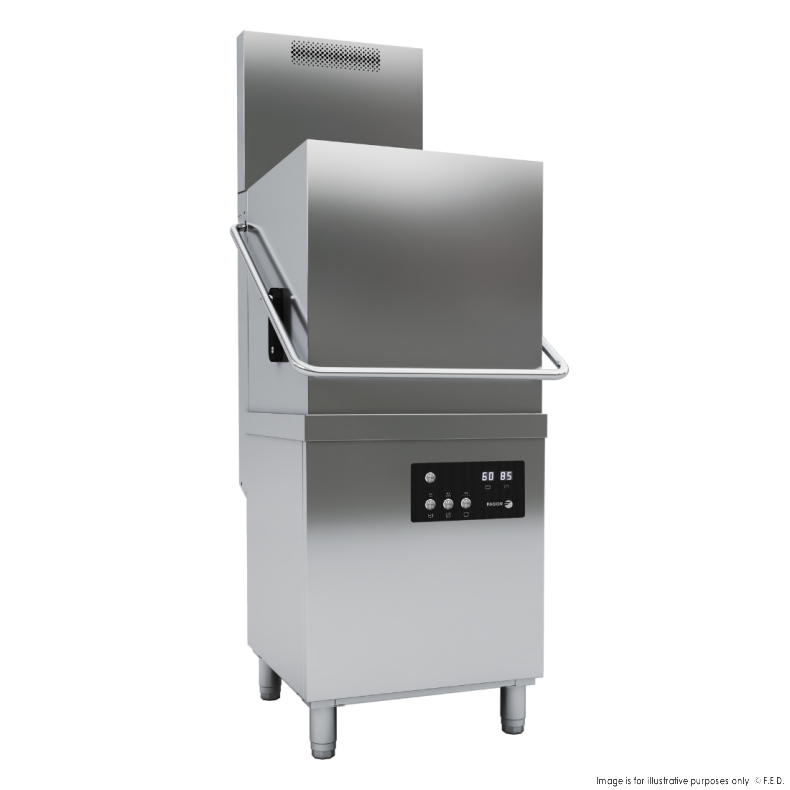

Fagor iNova Concept Pass-Through Dishwasher – WHC-502TBD

Description

Fagor iNova Concept Pass-Through Dishwasher – WHC-502TBD

Hood-type dishwasher concept range for a 500×500 basket with mains pressure, LED displays, drain pump and detergent dispenser.

Key Features

• Hourly production: 40 baskets/hour
• Clearance (max ware height): 450mm
• Electronic control
• Wash cycles: 90-120-180-480
• Stainless steel
• Double rotating wash and rinse systems, made of AISI-304 stainless steel
• Wash pump, 750W each
• Drain pump: 100W drainage cycle
• Tank with 3 kW heating power
• Tank capacity: 33 litres
• Boiler heating power: 6 kW
• Boiler capacity: 9 litres
• Water consumption: 2.2 litres/cycle
• Thermostatic temperature control: washing at 60 ℃ and rinsing at 85 ℃
• Two-digit LED displays
• Hydraulic rinse aid dispenser
• Dual-flow wash pump with soft-start
• Double-stage filtration system
• Dual-flow wash pumps
• Volumetric rinse
• A magnetic micro switch to stop the cycle in case of accidental opening of the hood.
• Adjustable legs
• Supplied with 1 glass basket, 1 plate basket, and 1 cutlery container
• Watermark approved
• Can be converted to single-phase
• Precision of working temperatures
• Temperature control by electronic probes
• Configurable control
• i-ERROR DIAGNOSIS: Error identification on screen
• Indications on the screen
• Drain pump

2 Years Parts and Labour Warranty
