Description

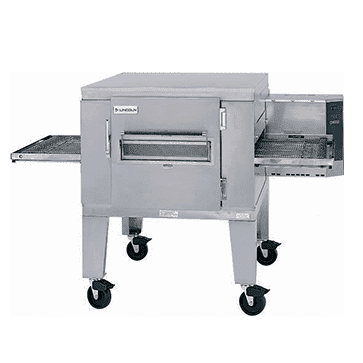

Lincoln 1400 Series Impinger I Single Belt Conveyorised Oven Single Deck – (1456-1)
Lincoln Impinger I 1400 Series is a self-contained conveyorised Impinger gas or electric oven that is stackable up to two high and designed for large cooking outputs. The Impinger I has a 32” (813mm) wide x 40” (1016mm) deep baking chamber and a front access door with cool handle. The digital control panel makes it simple to adjust speed and temperature. Has single fan cooling for quieter operation and a wide temperature range of 121°C to 316°C. Conveyor and air distribution fingers are removable through the front door for easy cleaning. Comes with 73” (1854mm) conveyor and includes crumb trays below the belt outside the baking chamber. Standard with FastBake™ technology which can reduce bake time by as much as 30% without increased noise levels or loss of product quality.
FEATURES:
- FastBake™ technology
- Stackable up to two oven cavities high
- 32” (813mm) wide, 73” (1854mm) long conveyor belt with take off shelf 40” (1016mm) baking chamber
- Temperature is adjustable from 121°C to 316°C
- Conveyor speed is adjustable from 1:00 to 30:00 minutes cooking time
- Front-loading access door with cool handle
- Direct conveyor drive is powered by an AC motor
- Stainless Steel top, front and sides
- Oven Start-Up/Check-Out by service agent included in price
- Digital Controls to adjust time and temperature
OPTIONS:
- 3/4 x 1200mm Flexible gas hose with quick disconnect – 432018-1200HK (other lengths available)
SPECIFICATIONS:
- Dimensions: 1981W x 1473D x 1641H mm (double deck)
- Clearance: Rear:152mm Right side:610mm
- Single deck: 90 x 12” pizzas/hr at 6mins
- Shipping dimensions: 4400W x 3400D x 1800H mm
- Shipping weight: 680kg
- Power Supply: 1NAC 230V 1 Phase 50Hz 3amp
- Output: 126MJ per deck
- Gas Connection: 3/4”
- Gas Approval No: AGA 4107 G
- Natural Gas
