Description

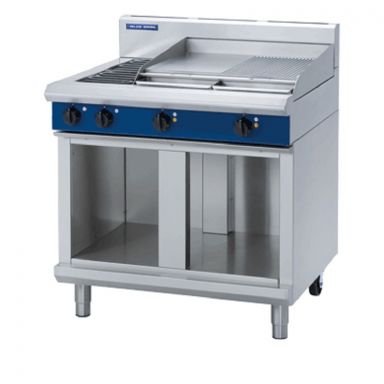

- 2 radiant elements cooktop with 600mm griddle on leg stand
- 2 x 2.4kW radiant elements*2 x 3.6kW griddle elements
- Radiant elements with energy regulator controls
- Heavy-duty stainless steel finish
- Heavy-duty reinforced control knobs
- Adjustable feet and 2 additional rollers
- Easy clean, installation and service
- Optional hot plate elements
- Griddle on RH as standard
Overall Construction
Cooktop
- Welded hob with 1.5mm 304 stainless steel bull nose
- Side panels 1.2mm 304 stainless steel
- Splashback 1.2mm 304 stainless steel
- Vitreous enamelled control panel
- 2.4kW open radiant elements in heavy-duty welded element frames
- Stainless steel spill trays
- Hot plate elements with machine finished 8mm steel plate (optional extra)
- 12mm thick mild steel griddle plates
- 2.5mm 304 stainless steel griddle splash guards
- Aluminised steel internal construction Griddle sections are standard on RH side. Available on LH side or centre to order.
Leg Stand (supplied as –LS model)
- Fully modular for matched suite finish
- Framed top for connection to Cooktop
- 63mm dia. heavy-duty 1.2mm 304 stainless steel legs with two adjustable feet at front and two rollers at rear
- Fully modular framed stand shelf with 0.9mm 304 stainless steel finish
- Quick assembly design
Controls
Cooktop
- Large easy use control knob – heat resistant reinforced
- Easy view control settings on knob
- Radiant elements with energy regulator controls
- Hot plate elements with energy regulator controls
- 50-320°C thermostat per 300mm griddle section
- Indicator lights for power and heating for each griddle control
- Power indicator light for each element control
Cleaning and Servicing
- All models with easy clean stainless steel external finish
- Removable vitreous enamelled element module and hob spill trays
- Lift up element and griddle sections
- Access to all parts from front of unit
- Refrigerated Base condenser removable through front of unit
