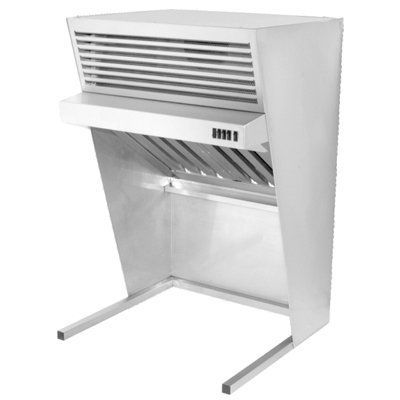

Woodson W.Chd750 Counter Top Ductless Filter Hood – 750Mm

Description

Constructed from 304 grade stainless steel, the Woodson 750mm Filter Hood is designed to slip seamlessly over currently existing countertop equipment. A unique ductless design incorporates stainless steel baffle filters, polyester filters and activated carbon filters to provide clean and safe discharge over suitable countertop equipment. The filters are easily removable for simple cleaning. Incorporating a powerful 4 speed fan, this unit couples adaptability with reliability, resulting in an effective, efficient and safe product.
• Polyester & activated carbon filters to provide clean, safe & odour controlled discharge from suitable countertop equipment
• Ideal for kiosk operations or where a ducted system is impractical or uneconomical
• Easily removable filters for simple cleaning
• Comply with the performance requirements of the NCC and relevant Australian Standards for use with electrical cooking equipment under 8kW, when operated and maintained in accordance with their manual
• Have been independently tested and certified to meet the strict air quality requirements of the ANSI/UL710B:Recirculating Hood Systems and the EPA test method 202, ensuring grease laden effluent in the exhaust airstream does not exceed an average of 5mg/m3 during an 8 hour test
• Performance certificate available (exclusive to Stoddart ductless hoods), contact your Stoddart representative for more details
• Air is drawn down the rear of the unit, filtered, then returned back to the kitchen through vents above
• Supplied with fluorescent lighting and variable speed fan
• The stainless steel filter drains freely to grease gutter and overflow pans for easy maintenance
• Ceiling mounted fluorescent lighting is included and guarantees that use of countertop equipment is simple and safe
• Filterhood is supplied with stainless steel square tube supports for locating on existing benchtops
• Unit is suitable for gas appliances up to 29mJ and electric appliances up to 8kW where AS1668.2 does not stipulate exhaust
• Supplied with a 10 Amp plug and lead
• Dimensions of 750 x 660 x 1150mm
• Electrical rating of 0.5kW – 10A
POLYESTER FILTERS
• Easy-clean polyester filters for use with counter top exhaust hood
• Polyester filter requires regular cleaning
ACTIVATED CARBON FILTERS
• Activated carbon filter, designed for use with counter exhaust hood
• Controls odour
