Description

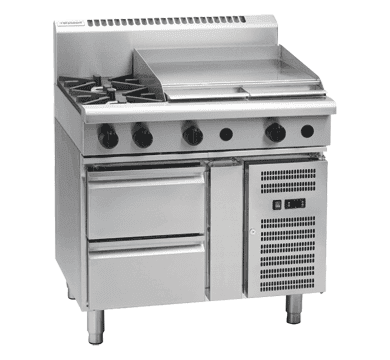

- 2 burner cooktop
- 600mm griddle plate
- 12mm thick mild steel griddle plate
- Refrigerated Base
- Heavy?duty construction
- 28 MJ/hr open burners
- Flame failure standard
- Available in Natural Gas & LPG
- Units supplied complete with gas type conversion kits
- Pilot burners optional
- Optional simmer plates
- Stainless steel exterior
- Easy to clean
- Easy service
- Fully modular
- Overall Construction ? Cooktop
- Welded hob with 1.5mm 304 stainless steel bull nose
- Splashback 1.2mm 304 stainless steel
- Side panels 1.2mm 304 stainless steel
- Vitreous enamelled control panel
- Aluminised steel internal construction
- Cast iron 28MJ/hr open burners with forged brass cap
- Vitreous enamelled cast iron potstands
- Vitreous enamelled open burner spill cover
- Vitreous enamelled spill trays
- Framed top for connection to Cooktop
- Suitable for rear or through shelf gas connection
- Refrigerated Base
- Digital control electronic thermostat
- Automatic evaporation of defrost water
- ?2° to + 8°C temperature range
- Ventilated system with R134a refrigerant
- 2 GN 1/1 drawers
- 100mm deep pan capacity
- SS exterior and interior
- Anti?corrosion treated evaporator
- 50mm fully foamed CFC free insulation
- No condensate drained required
- Adjustable feet
- Legs are 63mm dia. heavy?duty 1.2mm 304 stainless steel
- Cleaning and Servicing
- All models with easy clean stainless steel external finish
- Lift off burner heads
- Vitreous enamelled burner spill covers
- Stainless steel spill trays under open burner
- Access to all parts from front of unit
- Standard splashback or Low Back models available
- Low Back models are non-stocked items
- Warranty: 12 months Parts & Labour
- Maximum Gas: 96 MJ/hr; 26.6 kW
- Dimensions: 900 x 805 x 915 [h]
- Nett weight: 180 kg
