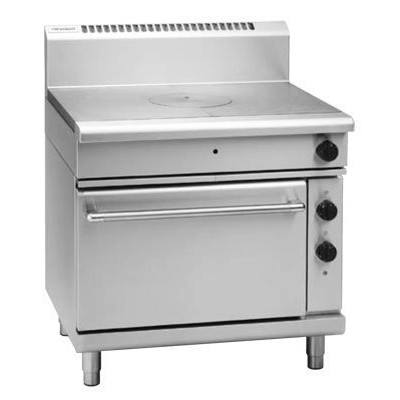

Waldorf RN8110GE 900mm Gas Target Top – Electric Static Oven

Description

Low splash back models (L) – the lead time can be up to 12 weeks

• Waldorf RN8110GE 900mm Gas Target Top – Electric Static Oven
• Heavy-duty cast iron top with removable centre ring
• Matched modular height machined top for seamless work surface
• High output dual ring cast iron burner
• Low back model (RNL) available
• Controls
• Large easy use control knobs – heat resistant reinforced
• Easy view control settings on knobs
• Target top
• Variable high to low burner control
• Single control knob for burner and pilot system
• Flame failure pilot burner
• Manual pilot ignition for reliable operation
• Oven
• Separate temperature and top heat power regulation controls
• 50-320 degrees C thermostatic control
• Lo-Hi top heat control
• Indicator lights for power and heating
• Cleaning and Servicing
• Removable oven racking and sole plate
• Easy clean vitreous enamel oven and door inner
• Easy clean stainless steel exterior
• Fully serviceable from front of unit
• Door hinge spring adjustable on unit (door outer removed)
• Door disengages for lift off removal and increased service access
• Access to all parts from front of unit
• Overall Construction
• Galvanized steel chassis
• Welded hob surround with 1.5mm 304 stainless steel bull nose
• Splashback and hob sides 1.2mm 304 stainless steel
• Front panels and oven sides 0.9mm 304 stainless steel
• 150mm legs in 63mm dia. heavy-duty 1.2mm 304 stainless steel with
• adjustable feet
• Target top
• 3 piece heavy-duty cast iron top with fully machined surface
• Top plates and removable centre with integral spill protection design
• Cast top reinforced with integral heat fins for heat zone definition
• 45MJ dual ring cast iron burner with single control
• Full pilot and flame failure protection
• 50mm thick refractory brick lined burner box for high heat retention
• 2 vitreous enamelled spill trays
• Supplied with heavy-duty centre casting removal tool
• Oven
• Fully welded and vitreous enamelled oven liner
• GN 2/1 capacity with 4 position racking
• Heavy-duty easy remove heavy wire chrome rack supports
• Cast iron even heat oven sole plate
• 6.5kW heating elements
• Welded frame drop down door with heavy-duty spring hinge system
• 0.9mm 304 stainless steel door outer
• 1.0mm press formed vitreous enamelled door inner
• High density fibreglass insulated
• Stay cool stainless steel door handle with cast metal handle mounts
• Supplied with two chrome wire oven racks
