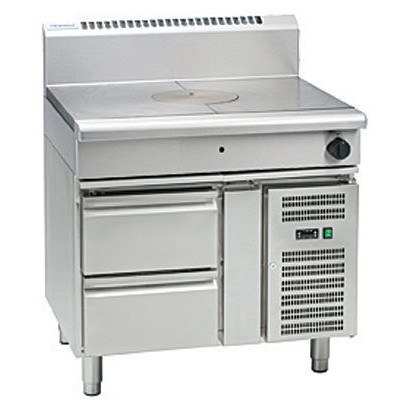

Waldorf RN8100G-RB 900mm Gas Target Top – Refrigerated Base

Description

Low splash back models (L) – the lead time can be up to 12 weeks

• Waldorf RN8100G -RB Gas Target Top – Refrigeration Base
• Heavy-duty cast iron top with removable centre ring
• Matched modular height machined top for seamless work surface
• High output dual ring cast iron burner
• Easy clean
• Easy service
• Fully modular
• Low back models (RNL) available
• Controls
• Target top
• Large easy use control knob – heat resistant reinforced
• Easy view control settings on knob
• Variable high to low burner control
• Single control knob for burner and pilot system
• Flame failure pilot burner
• Manual pilot ignition for reliable operation
• Cleaning and Servicing
• All models with easy clean stainless steel external finish
• Target Top fully serviceable from front of unit
• Refrigerated Base condenser removable through front of unit
• Overall Construction
• Target top
• 3 piece heavy-duty cast iron top with fully machined surface
• Top plates and removable centre with integral spill protection design
• Cast top reinforced with integral heat fins for heat zone definition
• 45MJ dual ring cast iron burner with single control
• Full pilot and flame failure protection
• 50mm thick refractory brick lined burner box for high heat retention
• Welded hob surround with 1.5mm 304 stainless steel bull nose
• Splashback and side panels 1.2mm 304 stainless steel
• Front panels 0.9mm 304 stainless steel
• 2 vitreous enamelled spill trays
• Supplied with heavy-duty centre casting removal tool
• Refrigerated base (supplied as -RB model)
• Self contained suite matched modular base
• Ventilated system with R134a refrigerant
• -2° to + 8°C temperature (Tropical Climate rated)
• Two GN 1/1 drawers
• 100mm deep pan capacity
• Heavy-duty European telescopic drawer guides
• Magnetic drawer gaskets (replaceable without tools)
• 50mm fully foamed CFC free insulation
• 304 stainless steel exterior and interior
• Anti-corrosion treated evaporator
• No condensate drain required
• 63mm dia. heavy-duty 1.2mm 304 stainless steel legs with
• adjustable feet
• Condensing unit removable through front of unit for service
• Easy clean interior
