Description
Low splash back models (L) – the lead time can be up to 12 weeks

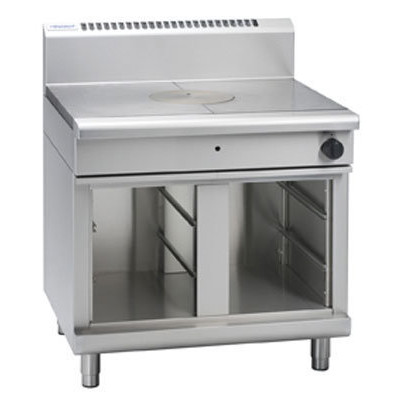

• Waldorf RN8100G -CB Gas Target Top – Cabinet Base
• Heavy-duty cast iron top with removable centre ring
• Matched modular height machined top for seamless work surface
• High output dual ring cast iron burner
• Easy clean
• Easy service
• Fully modular
• Low back models (RNL) available
• Controls
• Target top
• Large easy use control knob – heat resistant reinforced
• Easy view control settings on knob
• Variable high to low burner control
• Single control knob for burner and pilot system
• Flame failure pilot burner
• Manual pilot ignition for reliable operation
• Cleaning and Servicing
• All models with easy clean stainless steel external finish
• Target Top fully serviceable from front of unit
• Refrigerated Base condenser removable through front of unit
• Overall Construction
• Target top
• 3 piece heavy-duty cast iron top with fully machined surface
• Top plates and removable centre with integral spill protection design
• Cast top reinforced with integral heat fins for heat zone definition
• 45MJ dual ring cast iron burner with single control
• Full pilot and flame failure protection
• 50mm thick refractory brick lined burner box for high heat retention
• Welded hob surround with 1.5mm 304 stainless steel bull nose
• Splashback and side panels 1.2mm 304 stainless steel
• Front panels 0.9mm 304 stainless steel
• 2 vitreous enamelled spill trays
• Supplied with heavy-duty centre casting removal tool
• Fully modular for match suite finish
• Double skin 0.9mm 304 stainless steel interior and exterior
• Optional GN 1/1 4 position racking kit (1 or 2 cabinet bays)
• Up to eight 65mm GN 1/1 capacity
• 63mm dia. heavy-duty 1.2mm 304 stainless steel legs with adjustable feet
