Description

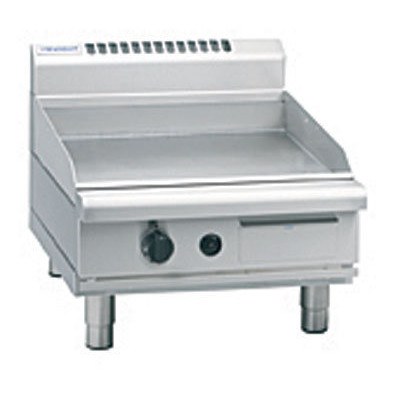

• Waldorf GP8600G-B 600mm Gas Griddle – Bench Model
• 53MJ thermostatic burner system
• 3 models of base unit
• Stainless steel exterior
• Easy clean
• Easy service
• Fully modular
• Low back models (GPL) available
• Controls
• 90-300°C thermostat
• Large easy use control knob – heat resistant reinforced
• Easy view control settings on knob
• Flame failure pilot burner
• Piezo ignition to pilot burner
• Cleaning and Servicing
• All models with easy clean stainless steel external finish
• Plate is finished front and rear with overlap construction to
• remove cleaning traps
• Control service and gas conversion through front of unit
• Burner service requires plate removal
• Overall Construction
• Griddle
• 20mm thick machined top plates standard
• Optional ribbed plate sections
• Optional mirror finish hard chrome plates
• 2.5mm thick 304 stainless steel splash guards sides and rear
• 2.0mm thick grease channel
• 53MJ single 4 bar even heat burner with single thermostatic control
• Full pilot and flame failure protection with piezo ignition
• Welded hob surround with 1.5mm 304 stainless steel bull nose
• Splashback and side panels 1.2mm 304 stainless steel
• Front panels 0.9mm 304 stainless steel
• Stainless steel grease drawer
• Overlapping finish at front and rear of plate for easy clean
• Bench mount (supplied as -B model)
• Four 63mm dia. heavy-duty 1.2mm 304 stainless steel bench legs with adjustable feet
• Adjustable height 80mm – 105mm
