Description

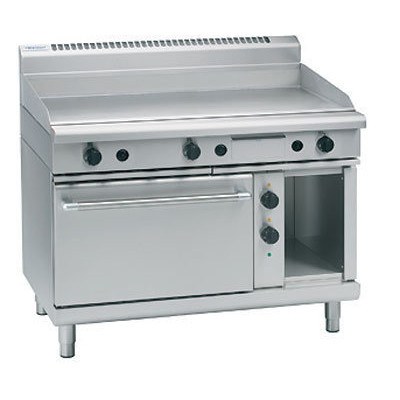

- 1200mm gas griddle
- 2/1 GN electric static oven
- 20mm thick griddle plate
- Full pilot and flame failure protection
- Heavy?duty thermostatic gas griddle
- 108 MJ/hr open burners
- Available in Natural Gas & LPG
- Units supplied complete with gas type conversion kits
- Ribbed plate options
- Top weld sealed plates
- Chromed mirror plate options
- Separate left, centre and right heat zones
- Storage cabinet on right hand side
- Drop down door
- Stainless steel exterior
- Easy to clean
- Easy service
- Fully modular
- Overall Construction ? Griddle
- Galvanized steel chassis
- Welded hob with 1.5mm 304 stainless steel bull nose
- Splashback and hob sides 1.2mm 304 stainless steel
- Front panels and oven sides 0.9mm 304 stainless steel
- Cast top reinforced with integral heat fins
- 2.0mm thick grease channel
- Stainless steel grease drawer
- Overlapping finish at front and rear of plate
- Oven
- 50?320°C thermostatic control
- Top heat power regulation controls
- Lo?Hi top heat control
- Indicator lights for power and heating
- Fully welded and vitreous enamelled oven liner
- GN 2/1 capacity with 4 position racking
- Easy remove heavy wire chrome rack supports
- Cast iron even heat oven sole plate
- 6.5kW heating elements
- Welded frame drop down door
- Heavy?duty spring hinge system
- High density fibreglass insulated
- Stay cool stainless steel door handle
- Supplied with 2 chrome wire oven racks
- Controls
- Large easy use control knob
- Heat resistant reinforced
- Easy view control settings on knob
- Three 90?300°C thermostats
- Piezo ignition to each pilot burner
- Flame failure pilot burners
- Cleaning and Servicing
- All models with easy clean stainless steel external finish
- Removable oven racking and sole plate
- Plate is finished front and rear
- Control service and gas conversion
- Burner service requires plate removal
- Adjustable door hinge spring
- Door disengages for lift off removal
- All parts front accessible from installed position
- Access to all parts from front of unit
- Standard splashback or Low Back models available
- Low Back models are non-stocked items
- Warranty: 12 months Parts & Labour
- Maximum Gas: 108 MJ/hr; 30 kW
- Dimensions: 1200 x 805 x 915 [h]
- Nett weight: 220 kg
