Description

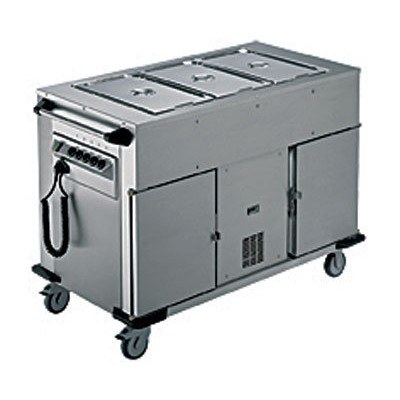

• Food transport trolleys, also with dry heating (1 refrigerated compartment), model Norm-III-1-1K
• Food transport trolleys made of stainless steel.
• Bain Marie top
• 1 X 55mm deep heated cabinet
• 1 X 55mm deep refrigerated cabinet
• 5 x GN 1/1
• Worktop with ridge edge
• Deep-drawn heated wells
• Welded-in, wet and dry heating with drain.
• Dry heating results in considerable energy savings.
• Wells for GN containers 1/1 up to 200 mm.
• Cupboard, doors double-walled, insulated.
• Dimensions per compartment: 330 x 570 x 438 mm,
• 1 heated compartment on left, 1 refrigerated compartment on right.
• Self-closing doors, transport lock.
• Tightly welded interior, hygienic design H3.
• Each with 8 pairs of seamless deep-drawn support rails, clearance 37 mm for holding GN containers up to GN 1/1.
• Safety pushing handle.
• Corner bumpers.
• Rustproof casters in accordance with DIN 18867, part 8.
• Wheel diameter 125 mm.
• 2 fixed casters, 2 swivel casters with brake, with wheel arrangement HL or VHL, if desired.
• Heated cupboard (left) 1 heating element per cupboard 1/1, heating output can be regulated separately.
• ON/OFF rocker switch
• Thermostat regulation from +30 °C to +90 °C.
• Refrigerated cupboard
• 1 cupboard 1/1, refrigeration output can be regulated separately.
• ON/OFF rocker switch
• Thermostat regulation, refrigeration range from +2 °C to 10 °C.
• Refrigeration output: 118 W at -10 °C evaporation temperature, refrigerant R 134a.
• Switch elements protected against impacts
• Spiral cable 2 m, blind socket.
• VDE/GS approved/protection class IP X3, splash-proof.
• Connected load 1,970 W, rated voltage 1N AC 230 V 50 Hz/60 Hz.
