Description

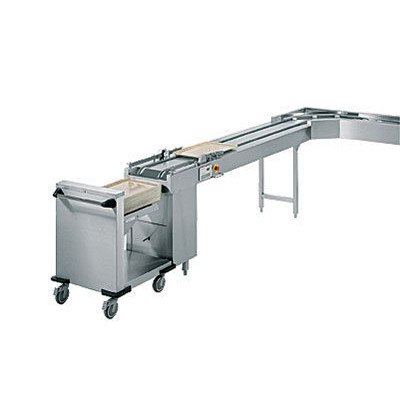

• Rieber Clearing belt conveyor
• Left = contrary to belt travel direction
• Right = contrary to belt travel direction
• Belt unit, belt conveyor and motor station in modular design.
• Stainless steel housing, belt suitable for use with foodstuffs and antistatic, 295 mm wide, white.
• Control unit at the end of the belt, switch cabinet with control/fuse box, main switch.
• Three phase motor, stepless adjustment from 2.5 – 10.5 m/min.
• Drawer with dirt scraper.
• Up to 12 m 1 drive unit, over 12 m, 2 drive units.
• On uprights, height adjustable +/- 15 mm.
• Upright spacing 2 m.
• Functions: belt on/stop/proportional speed display, emergency STOP switch.
• Rated voltage 3N AC 400 V 50 Hz
• Keyboard optionally on left or right side in direction of operation
