LINCOLN 2504-1 Digital Countertop Impinger Series Electric Conveyor Oven

Description

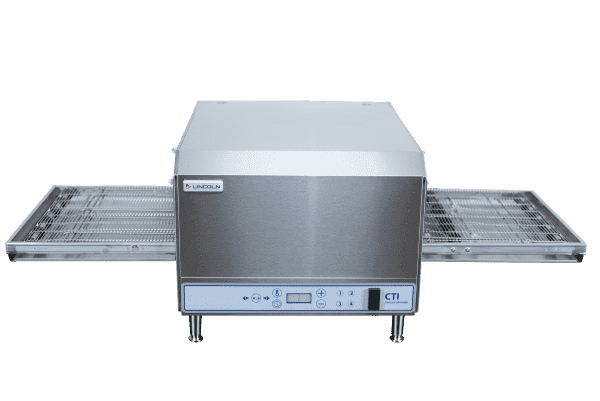

Lincoln Digital Countertop Impinger Conveyor Oven Single Deck – (2504-1)

The Lincoln 2500 series Digital Countertop Impinger (CTI), is a selfcontained conveyorised electric Impinger oven that is stackable up to two high and designed for countertop use. The digital oven controls are located on the front of the oven and include a power on/off switch, temperature control and conveyor speed control. The push button control panel with a digital temperature display and 4 preset menu options provides a ‘simple-to-operate’ end-user experience with consistent throughput. The conveyor is reversible (right to left / left to right) from the control panel allows easy placement within different kitchen environments. Menu flexibility is enhanced due to an improvement of the adjustable conveyor speed so that it now ranges from 30 seconds to 15 minutes. Features a robust ‘stepper’ motor and a wide temperature range of 32°C to 315°C. Conveyor and air distribution fingers are removable through the side panels for cleaning. Must be used with included 100mm legs for proper cooling. Includes 1270mm conveyor with end stop and crumb trays below the belt outside the baking chamber.

FEATURES:

• Air Impingement
• Uniform heating/cooking of food
• Oven has one self-contained heating system
• Reversible conveyor direction switch on front control panel
• Push button controls assure consistency and are easy for operators to program and adjust
• 4 Programmable set-menu controls
• Ventless operation for single deck. Local codes apply.

ALTERNATE MODEL:

• Certified Ventless Model
• Includes catalytic converter so therefore can be installed without a ventilation hood in single or Double stack configurations
• Electrical specification as per below

SPECIFICATIONS:

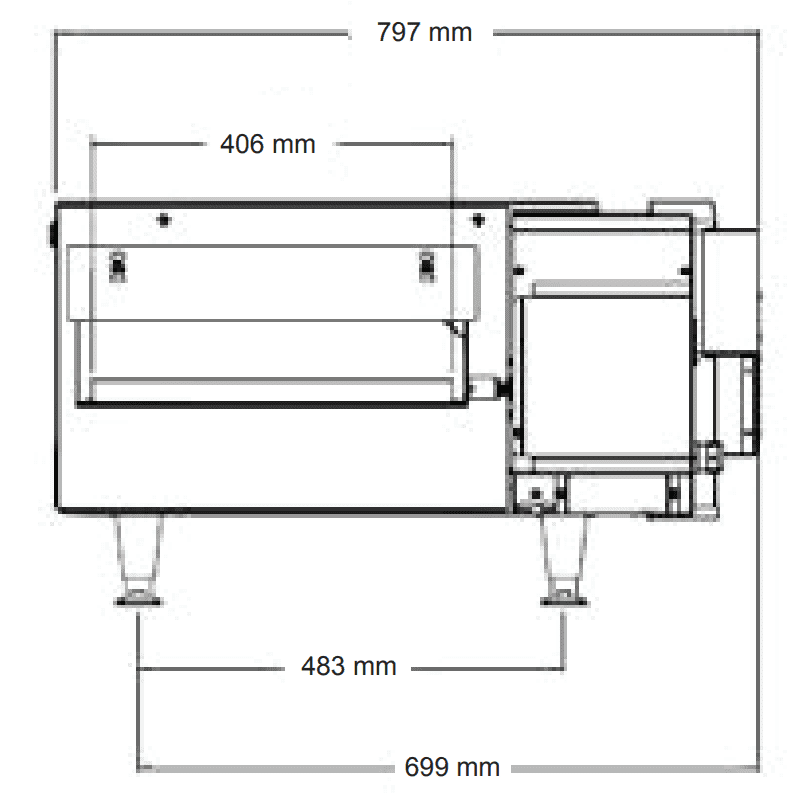

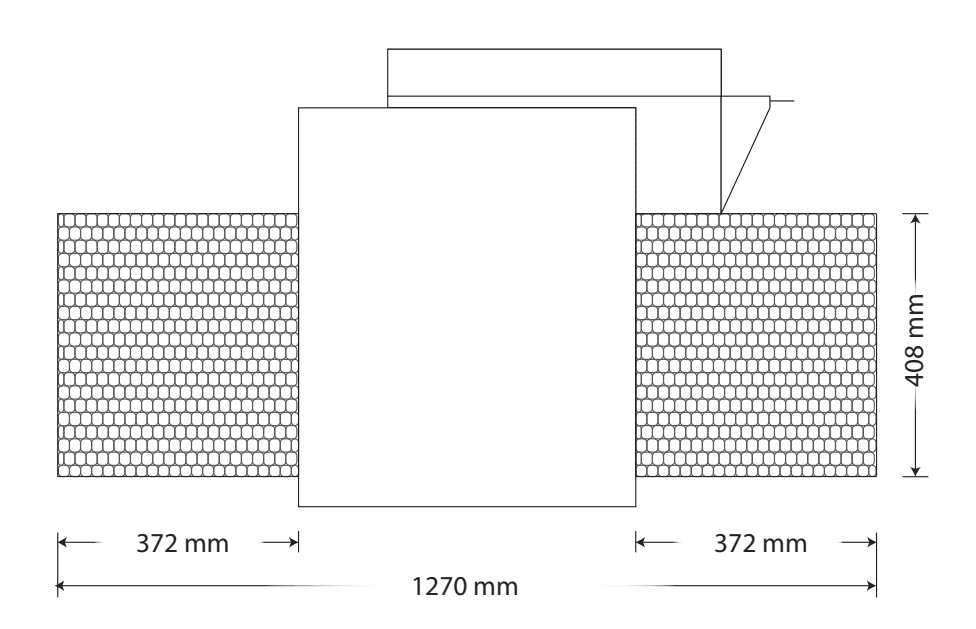

• Dimensions: 1270W x 797D x 457H mm (single deck)
• Clearance: Rear:152mm Right side:610mm
• Single deck: 48 x 8” pizzas/hour at 6:30 mins
• Power Supply: 1NAC 240V 1 Phase 50Hz 25amp Lead and Plug Not Included
• Output: 6kW
• Shipping dimensions: 1500W x 1100D x 600H mm
• Shipping weight: 93kg
