Description

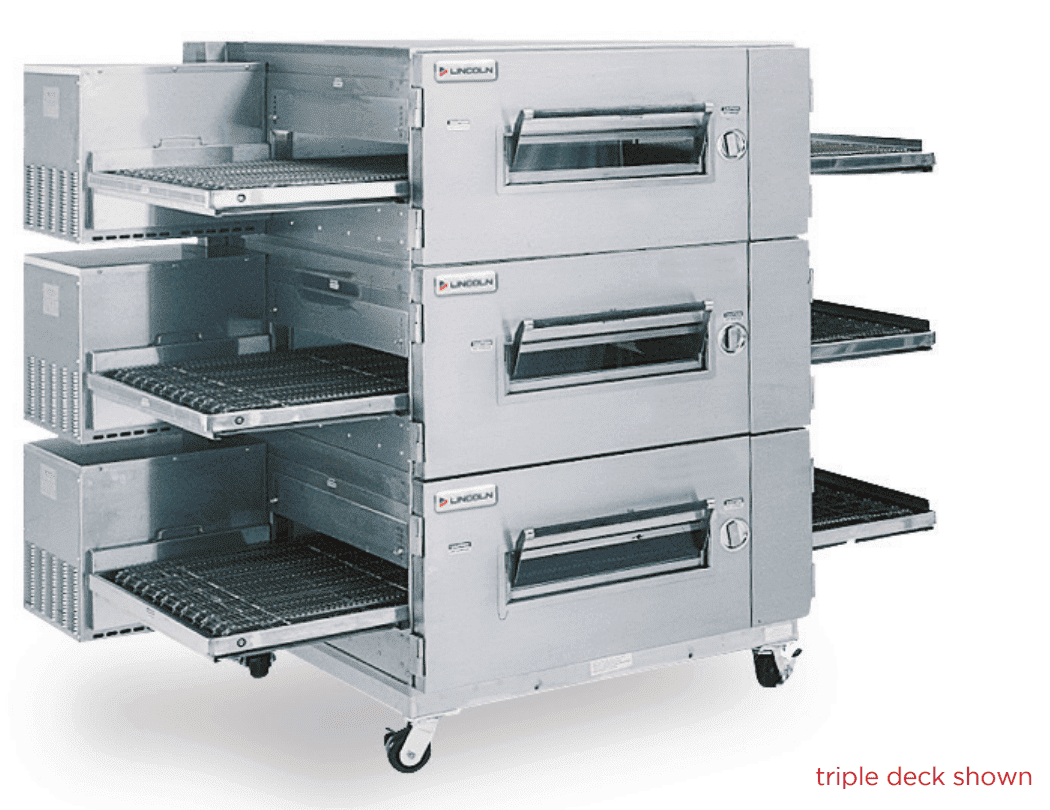

Lincoln 1600 Series Impinger Low Profile Conveyor Oven Triple Deck – (1634-3)
The Lincoln Impinger 1600 Series is a self-contained conveyorised Impinger gas oven that is stackable up to three high and designed for medium to large cooking outputs. The Impinger has a 32” (812mm) wide x 40” (1016mm) deep baking chamber and a front access door with cool handle. The digital control panel makes it simple to adjust speed and temperature. The low profile design allows for triple stacking within a manageable footprint (1387mm height to top conveyor). Standard with FastBake™ technology which can reduce bake time by as much as 30% without increased noise levels or loss of product quality.
FEATURES:
- FastBake™ technology
- Stackable up to three oven cavities high
- 32” (813mm) wide, 73” (1854mm) long conveyor belt with product stop
- 40” (1016mm) baking chamber
- Temperature is adjustable from 121°C to 316°C
- Conveyor speed is adjustable from 1 minute to 30 minutes cooking time
- Front-loading access door with cool handle
- Direct conveyor drive is powered by an AC motor
- Stainless Steel top, front and sides
- Oven Start-Up/Check-Out by service agent included in price
OPTIONS:
- 3/4 x 1200mm Flexible gas hose with quick disconnect – 432018-1200HK (other lengths available)
SPECIFICATIONS:
- Dimensions: 2032W x 1537D x 1692H mm (triple deck)
- Clearance: Rear:152mm Right side:610mm
- Single deck: 90 x 12” pizzas/hr at 6mins
- Gas Connection: 3 /4”
- Gas Approval No: AGA 4930 G
- Propane Gas
- Output: 116MJ per deck
- Power Supply: 2.5m Lead & Plug included
