Description

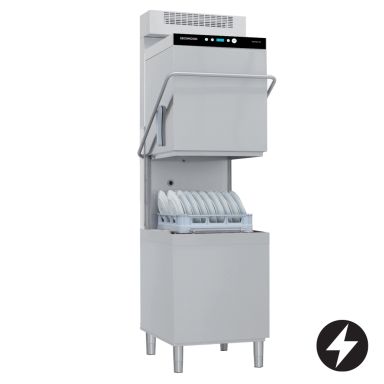

The New Smartwash Range of Pass-through warewashers is the first attractive, intelligent, one-touch warewashing system in Australia that offers incredibly sustainable results in water and energy consumption. This professional warewasher offers the first one-touch control panel with digital wash and rinse temperature displays for easy HACCP recording for accurate food safety reporting.
These machines are sleek and compact because we know space is of the essence and presentation is key.
Independently certified for ventless/hoodless installation (SEED). The heat recovery system recycles energy by the steam generated
in the dishwasher, saving energy in every cycle.
Specifications:
- Dishwasher Dimensions (WxDxH): 633 X 755 X 1565 mm
- Heat Recovery Unit Dimensions (WxDxH): 633 X 755 X 700 mm
- Hood Construction: Double-Skinned
- Hood Opening; 465 mm
- Hood Lift System: Proglide (3 Kg)
- Hood Lift Handle: All-Around
- Wash Chamber: Totalclean – Pipe Free
- Rack Stand Construction: S/S Wire Hinged
- Tank Volume: 22 Litres
- Tank Construction: Deep Drawn
- Tank Heating Element: 2,5 kW
- Wash Pump Type: Double Flow
- Wash Pump Power: 700 W
- Rinse System: Smartrinse
- Rinse Booster Pump: Fitted
- Self Diagnostic System: Fitted
- Boiler Heating Element: 7 kW
- Fresh Water Consumption: 1.8 Lt/Rack
- Drain System: Smartdrain (Deep Drain)
- Drain Pump: Fitted
- Dosing System: Prodose Electr. Controlled
- Detergent & Rinse Aid Pump: Fitted
- Total Electric Load At 415V (3Ph+N+E): 10,2 kW
- Wash Cycles: 60, 90, 180 Sec + Special
- Self Cleaning Cycle: Yes
- Watermark Approval: WMKT25317
- HACCP Approval: PE-388-GE-09
