Description

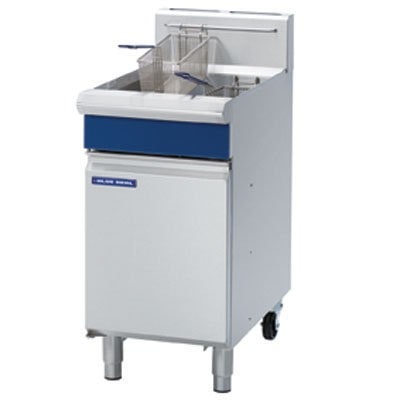

- 450mm single pan gas fryer
- 20 litre oil capacity
- 31kg/hr production rate
- 2 x 45MJ/hr infrared burners
- Mechanical controls
- Easy clean, installation and service
- Supplied with 2 standard baskets
Overall Construction
- Stainless steel pan with 10 year limited warranty
- Bull nose welded 1.5mm 304 stainless steel
- Splashback 1.2mm 304 stainless steel
- Side panels 1.2mm 304 stainless steel
- Double skin door with 0.9mm 304 stainless exterior
- Vitreous enamelled front panel
- 32mm (1 1 /4”) drain valve
- 63mm dia. heavy-duty 1.2mm 304 stainless steel adjustable legs at front and two rollers at rear
- 2 baskets and stainless steel lid supplied standard
Controls
- Direct action thermostat reacts to + or – 1.0°C
- Thermostat range 145 – 195°C
- Over-temperature safety cut-out
- Millivolt gas valve system (no electrical supply)
- Flame failure protection on each pilot
- Piezo ignition to standing pilot burners
Cleaning and Servicing
- Open stainless steel pan for easy clean
- Easy clean basket support bar
- 32mm (1 1 /4”) drain valve for effective draining
- Easy clean stainless steel exterior
- Access to all parts from front of unit
