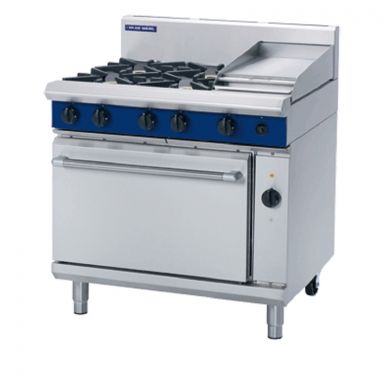

Blue Seal Evolution Series GE56C – 900mm Gas Range Electric Convection Oven

Description

• 4 burners cooktop range with 300mm griddle
• 2/1 GN electric convection oven
• 4 x 28MJ/hr open burners, 1 x 20MJ/hr griddle burner
• Heavy-duty stainless steel finish
• Flame failure protection on all burners
• Removable heavy-duty cast iron burners and vitreous enamel pot stands
• Heavy-duty reinforced control knobs
• Drop down door with welded frame
• Fully welded and vitreous enamelled oven liner
• Cool touch stainless steel door handle
• Adjustable feet and 2 additional rollers
• Easy clean, installation and service
• Griddle on RH as standard

Overall Construction

• Galvanized steel chassis
• Welded hob with 1.5mm 304 stainless steel bull nose
• Hob sides 1.2mm 304 stainless steel
• Splashback 1.2mm 304 stainless steel
• Front panels and oven sides 0.9mm 304 stainless steel
• Vitreous enamelled hob control panel
• 63mm dia. heavy-duty 1.2mm 304 stainless steel adjustable legs at front and two rollers at rear

Cooktop

• Cast iron 28MJ/hr open burners with forged brass cap
• Vitreous enamelled cast iron potstands
• Vitreous enamelled open burner spill covers
• Cast iron simmer plates (optional extra)
• 12mm thick mild steel griddle plates
• 2.5mm 304 stainless steel griddle splash guards
• Stainless steel spill trays
• Aluminised steel internal construction Griddle sections are standard on RH side. Available on LH side or centre to order or by conversion.

Oven

• Fully welded and vitreous enamelled oven liner
• GN 2/1 capacity with 4 position racking
• Heavy-duty easy remove heavy wire chrome rack supports
• Cast iron even heat oven sole plate
• 6.5kW heating elements
• 100W heavy-duty motor
• 200mm diameter heavy-duty circulation fan
• Drop down door
• 0.9mm 304 stainless steel door outer
• 1.0mm vitreous enamelled door inner
• High density fibreglass insulated
• Supplied with two chrome wire oven racks

Controls

• Large easy use control knob – heat resistant reinforced
• Easy view control settings on knob

Cooktop

• Variable high to low controls to open burners
• Open burners flame failure standard with pilot burners optional
• Variable high to low controls to griddles
• Griddles standard with pilot, flame failure and piezo ignition

Oven

• 50-320°C thermostatic control
• Indicator lights for power and heating
• Fan and elements automatic off when doors open

Cleaning and Servicing

• All models with easy clean stainless steel external finish
• Lift off burner heads and vitreous enamelled burner spill covers
• Stainless steel spill trays under open burner and griddle sections
• Removable oven racking and sole plate
• Easy clean vitreous enamel oven and door inner
• Access to all parts from front of unit
