Blue Seal Evolution Series G598-B – 1200mm Gas Chargrill Bench Model

Description

• 1200mm gas chargrill bench model
• 4 x 33 MJ/hr thermostatic burner system
• Top grates reversible for level or inclined use
• Inclined position to reduce flare and enhance grease run
• Full pilot and flame failure protection per burner
• Lift out radiants, burners and grease tray baffles
• Heavy-duty reinforced control knobs
• Easy clean, installation and service

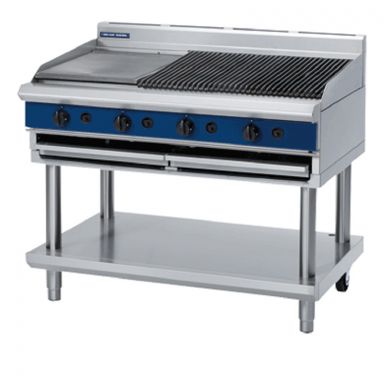

• (Image shown as G598-LS, leg stand model)

Overall Construction

Chargrill

• 2.5mm thick 304 stainless steel side splash guards
• Welded 1.5mm 304 stainless steel bull nose
• Side panels 1.2mm 304 stainless steel
• Splashback 1.2mm 304 stainless steel
• Vitreous enamelled control panel
• Front grease channel
• Welded 1.2mm 304 stainless steel grease trays
• 1.5mm aluminised steel burner box
• Insulated sides

Bench mount (supplied as -B model)

• Four 63mm dia. heavy-duty 1.2mm 304 stainless steel bench legs with adjustable feet
• Adjustable height 80mm-105mm

Grates and radiants and baffles

• 150mm wide x 550mm top grate sections
• Top grates reversible for level or inclined use
• Inclined position incorporates flare reducing grate fin design with grooves to run grease into front collection channel
• Heavy weight castings for high demand performance
• Heavy-duty high efficiency cast iron burner radiants improve heat retention and protect burners
• Baffles over grease trays to reduce grease collection flare ups

Griddle plates

• Optional extra 300mm wide and 450mm wide x 550mm deep drop on cast iron griddle sections
• Machined smooth surface finish
• Interchangeable in any position with 2 or 3 sections of top grate
• Multiple griddle sections can be mixed in any positions

Burners

• Full 304 stainless steel burners
• 1 x 33MJ/hr burner per 300mm section (600mm, 900mm, 1200mm models)
• 1 x 48MJ/hr burner on 450mm model
• Removable for cleaning
• Full pilot and flame failure protection per burner

Controls

• Individual Hi-Lo gas control to each burner with flame failure and pilot
• Large easy use control knob – heat resistant reinforced
• Easy view control settings on knob
• Piezo ignition to pilot burner

Cleaning and Servicing

• Easy clean stainless steel external finish
• Lift out radiants, burners and grease tray baffles
• All burner box interior parts lift out for full cleaning access
• Deep stainless steel grease collection drawers
• Access to all parts from front of unit
