Description

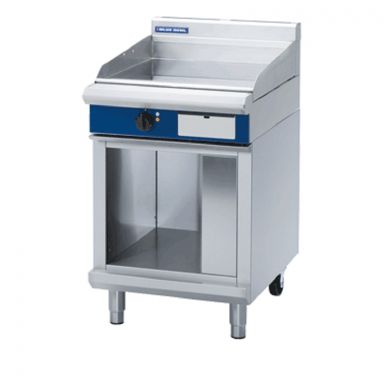

- 600mm electric griddle on cabinet base
- 7.2kW heating elements
- 20mm thick griddle plate
- Single temperature control zone
- Top weld sealed plates
- Stainless steel grease drawer
- Heavy-duty reinforced control knobs
- Adjustable feel and 2 additional rollers
- Easy clean, installation and service
- Optional ribbed or chrome mirror plate
Overall Construction
Griddle
- 20mm thick machined top plates standard
- Optional ribbed plate sections
- Optional mirror finish hard chrome plates
- 2.5mm thick stainless steel splash guards sides and rear
- 2.5mm thick grease channel
- Single temperature control zone
- Welded hob surround with 1.5mm stainless steel bull nose
- Side panels 1.2mm stainless steel
- Splashback 1.2mm stainless steel
- Enamelled control panel
- Stainless steel grease drawer
- Overlapping finish at front and rear of plate for easy clean
Cabinet base (supplied as –CB model)
- Fully modular for match suite finish
- Double skin 0.9mm stainless steel interior and exterior
- Optional GN 1/1 4 position racking kit
- 63mm dia. heavy-duty 1.2mm stainless steel legs with two adjustable feet at front and two rollers at rear
Controls
- 50-300°C thermostat
- Single temperature control zone
- Large easy use control knob – heat resistant reinforced
- Easy view control settings on knob
- Indicator lights for power and heating
- Over-temperature safety cut-out
Cleaning and Servicing
- All models with easy clean stainless steel external finish
- Plate is finished front and rear with overlap construction to remove cleaning traps
- Control service through front of unit
